Description
Siniat InterHome is a separating wall system suitable for adjoining residential dwellings such as duplexes or townhouses. Siniat InterHome has been designed to satisfy the fire safety and sound insulation requirements of the Building Code of Australia (BCA) for separating walls.
The Siniat InterHome System includes two proprietary metal components; the H-Stud and the Siniat InterHome Aluminium Clip. The Siniat InterHome Aluminium Clip is an integral part of the InterHome System. Installed to support the central fire barrier, it must be used to maintain the fire performance of the system.
| Name | Image | Width (mm) | BMT (mm) | Length (mm) | Code |

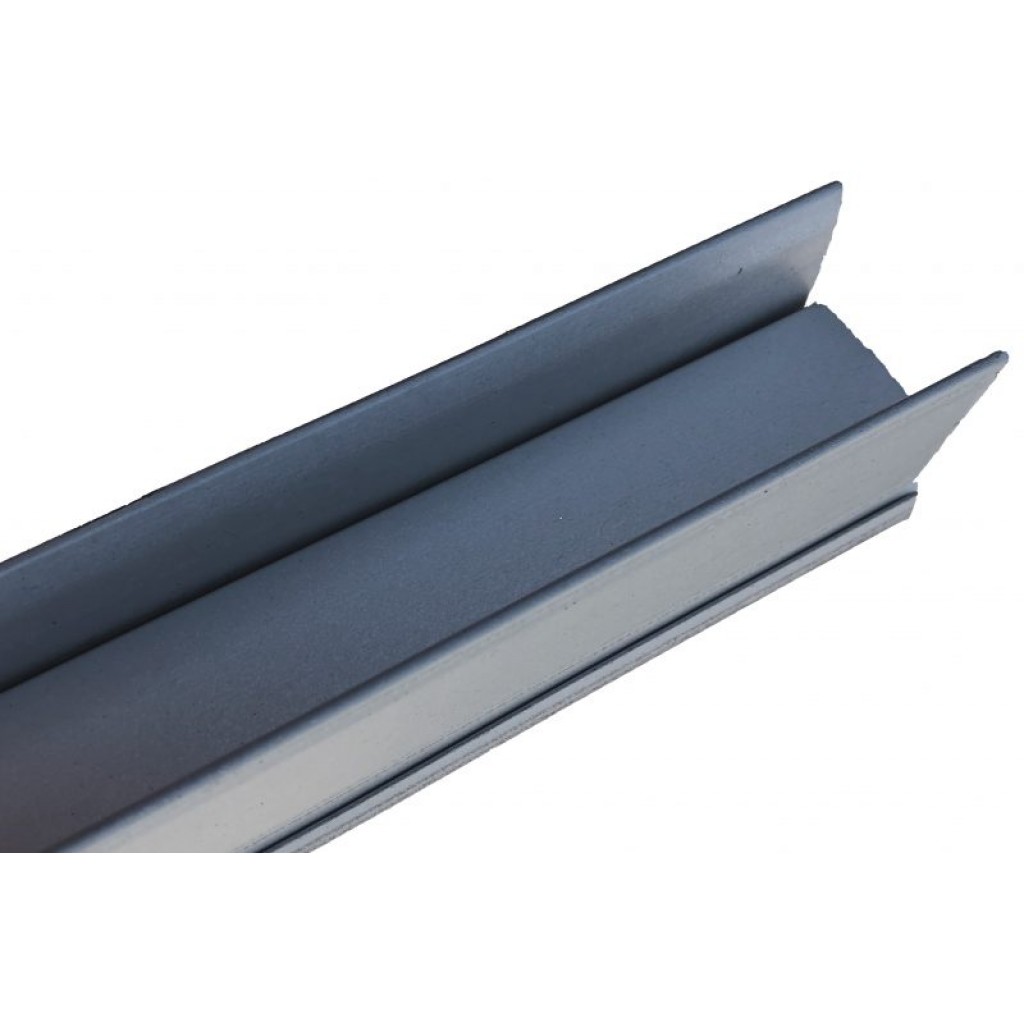

| Interhome H-Stud |  |
32 | 0.55 | 3000 3600 |
AIHS25-30 AIHS25-36 |
| Furring Channel J-Track |  |
18 28 |
0.50 | 3000 | FCWT1830 FCWT2830 |
| Interhome Aluminium L Bracket |  |
40 | 1.6 | 80 | ACIH-L |
| Slotted Back Angle |  |
50 | 0.75 | 3000 | ASBA50/35-075-30 |
